LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle
  • Load image into Gallery viewer, LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle

LCD Screen CICADA NSK TYPE Dental Brushless Electric Motor For 1:1/1:5/16:1 Handpiece Contra Angle

Regular price
$499.99
Sale price
$499.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

*Precision torque control - Maintains a constant speed at variable working pressures, improving tactile feel and handling.

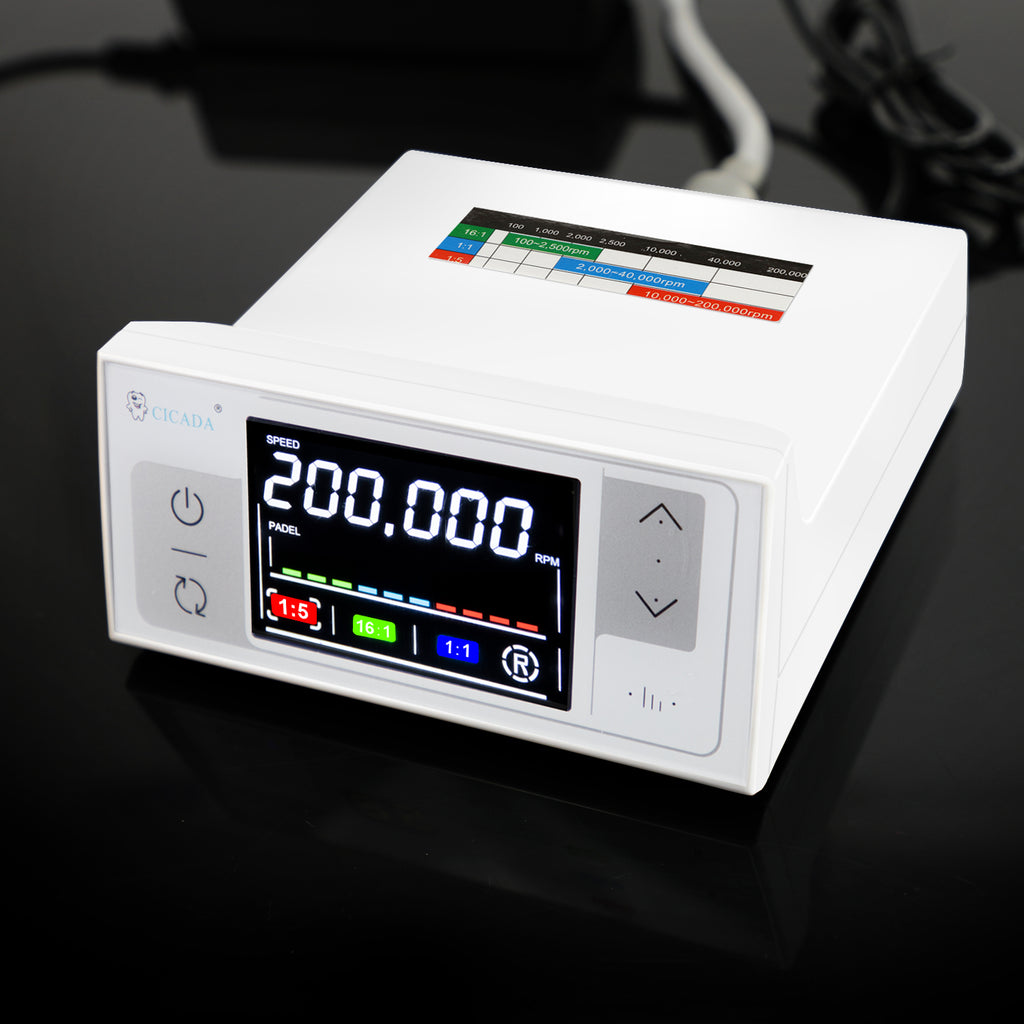

* 4.5'' LCD Screen, 3rd Generation Brushless Motor

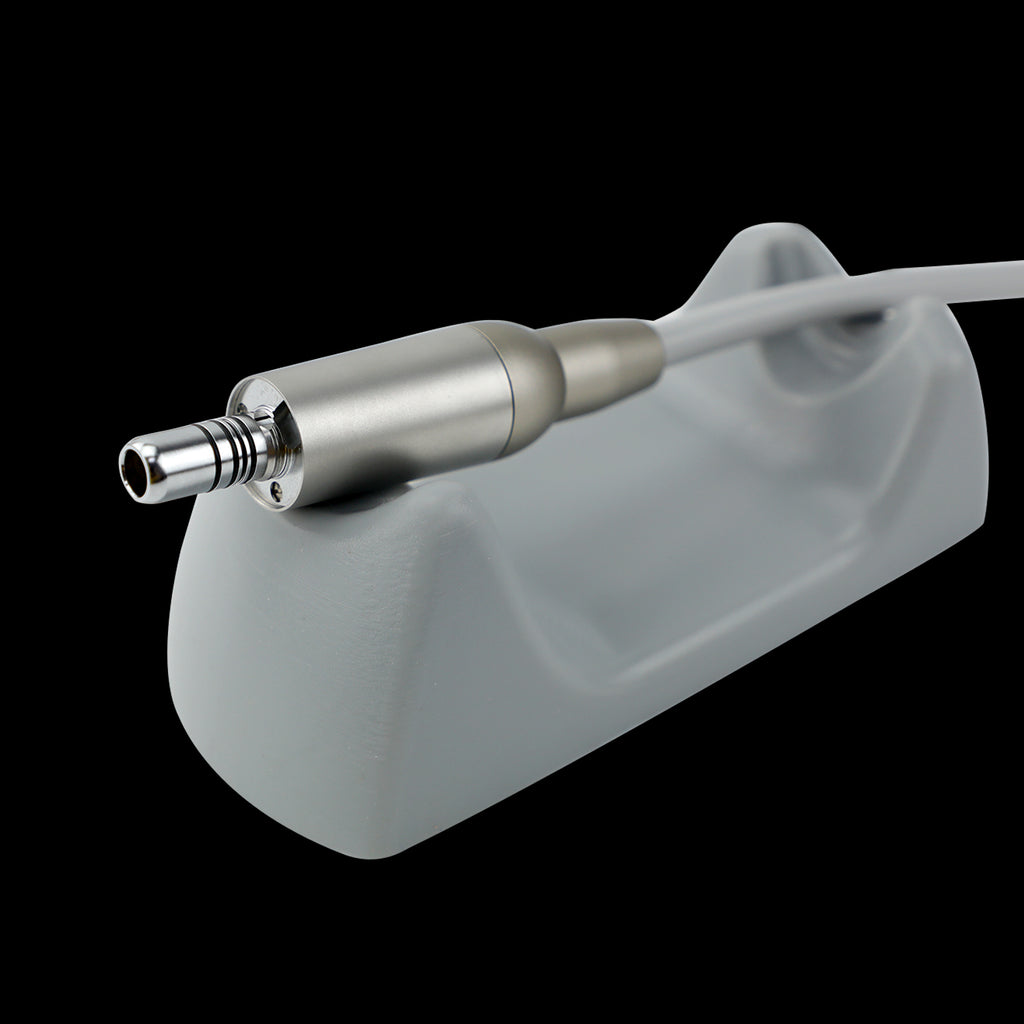

*Brushless micromotor, max speed: 200,000rpm

*32,000lux white led in the motor, compatible with fiber optic contra-angle

*Touch Screen panel offers better operation

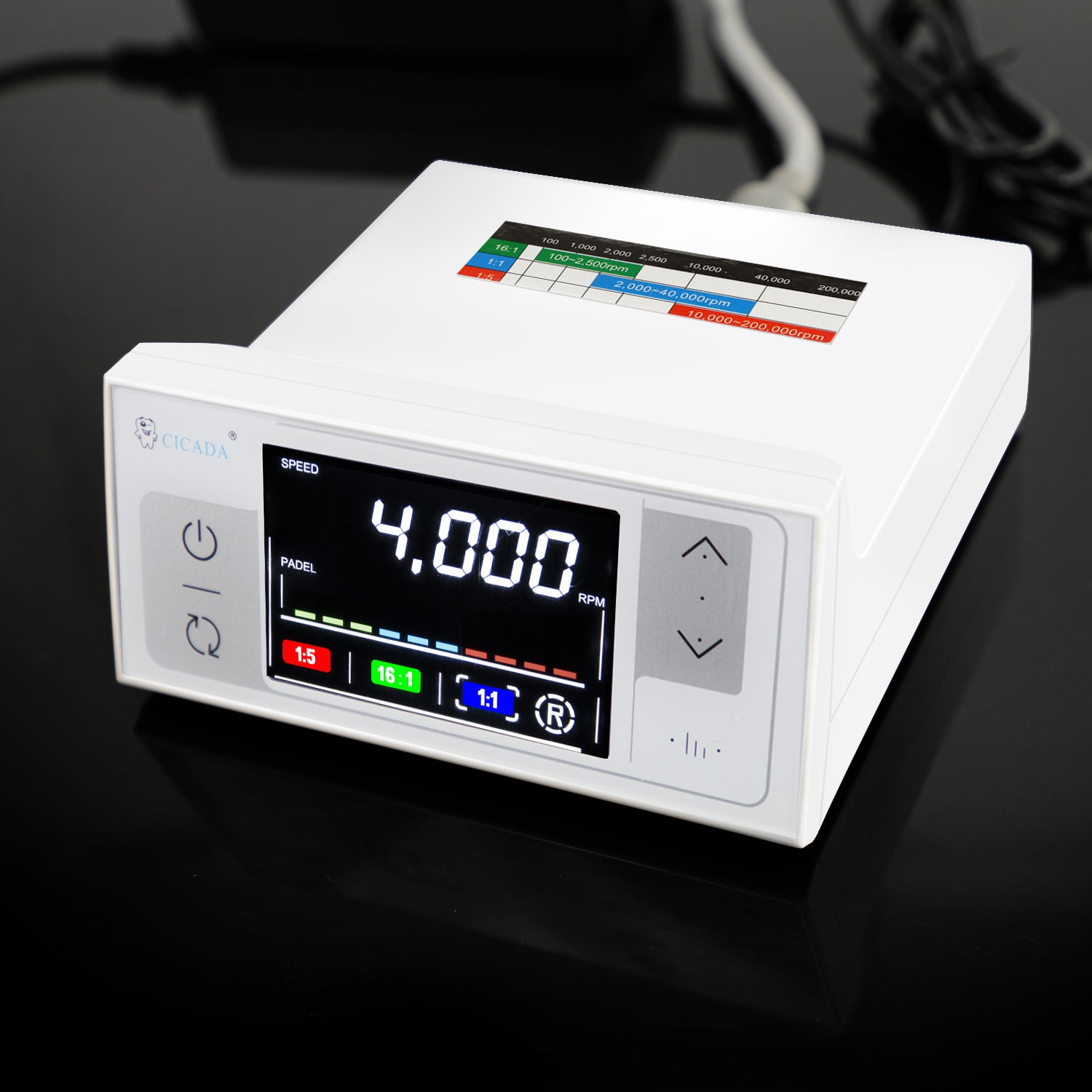

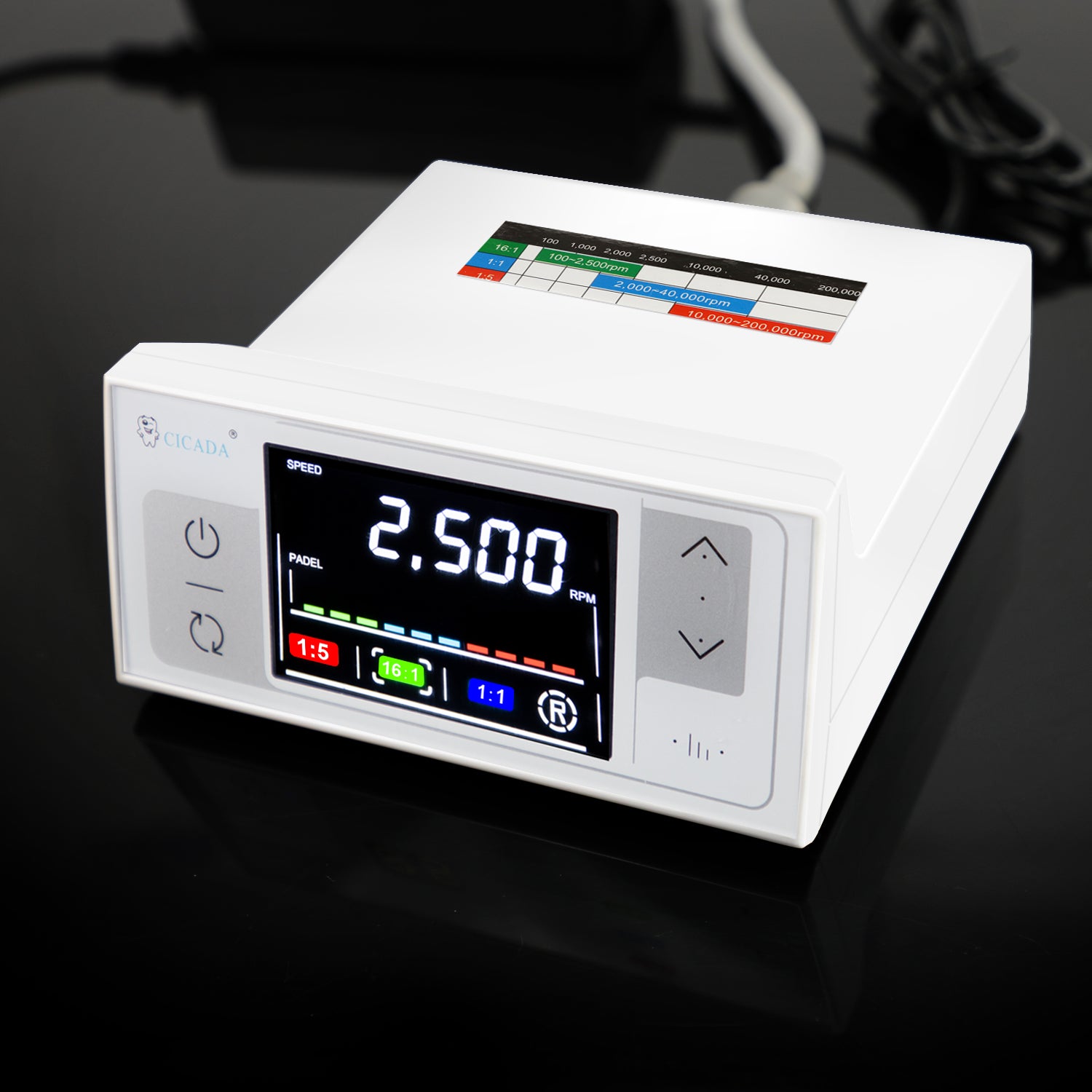

*Digital speed read-out, Easy speed adjustment

*Three optional settings(1:1/16:1/1:5)

*E-Type coupler

Available for various E-type motors in accordance with ISO standard*Compatible with all e-type motors (NSK, KaVo®, Sirona®, W&H®, Bien-Air®)



Dental Electirc motor
1. This product is operated manually control counter-clockwise and transform clockwise

2. The product can be connected to the dental chair,

3. the motor ratio can be adjusted to adapt to different dental handpieces.

Press the selection button "S“ to switch the speed ratio,

Press the "M1" or "M2" button to export the recorded rpm.
Ratio M1 M2
16:1 300rpm 1,500rpm
1:1 10,000rpm 30,000rpm
1:5 50.000rpm 200,000rpm





*Three optional settings(1:1/16:1/1:5)

Speed:4000-40,000rpm

Working Air Pressure:0.25Mpa-0.4Mpa

Water Pressure:0.2Mpa-0.4Mpa

Input voltage:AC 110-220V, 50/60Hz

Output voltage:24V

Output current:5000mA



Torque: 64Ncm
