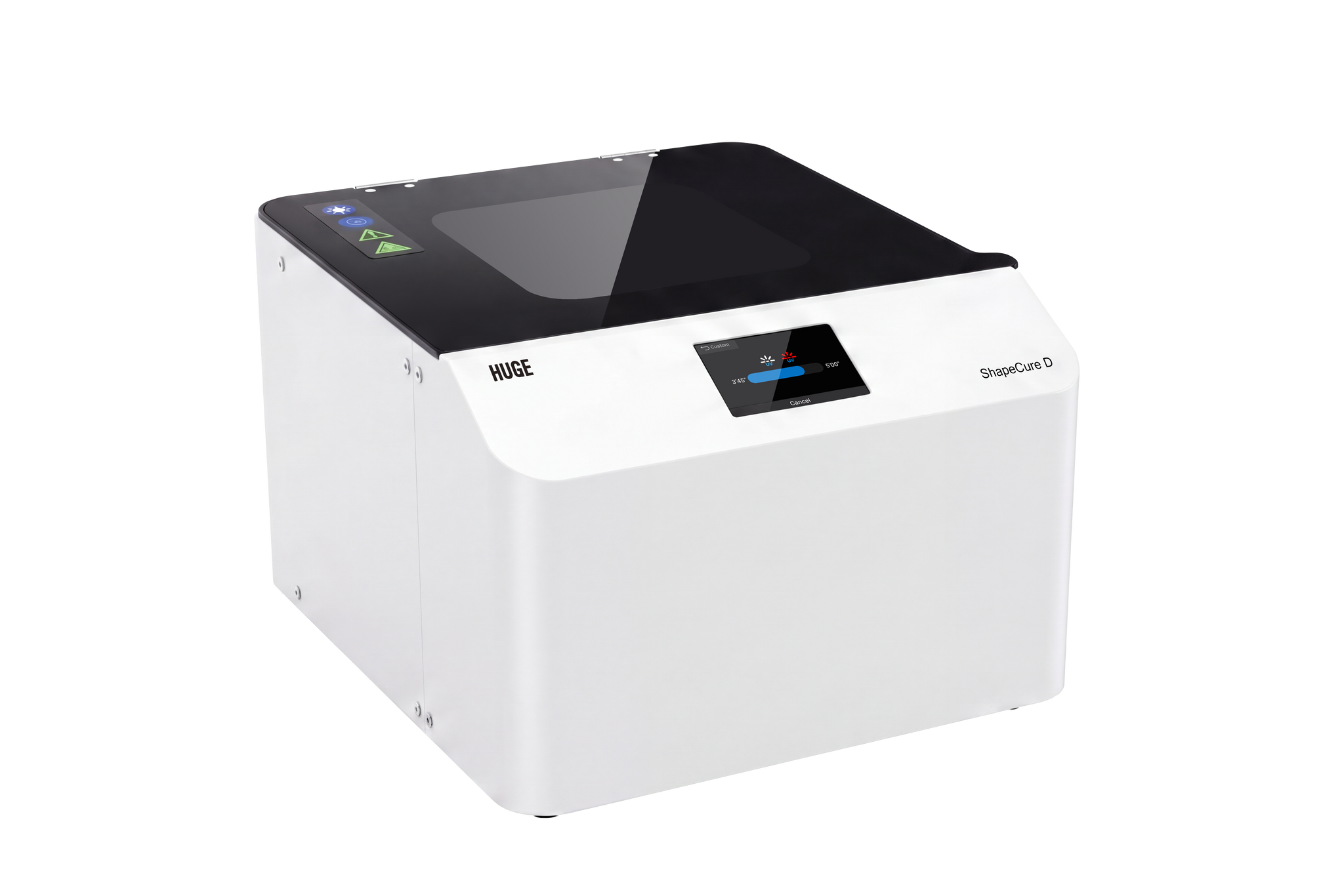

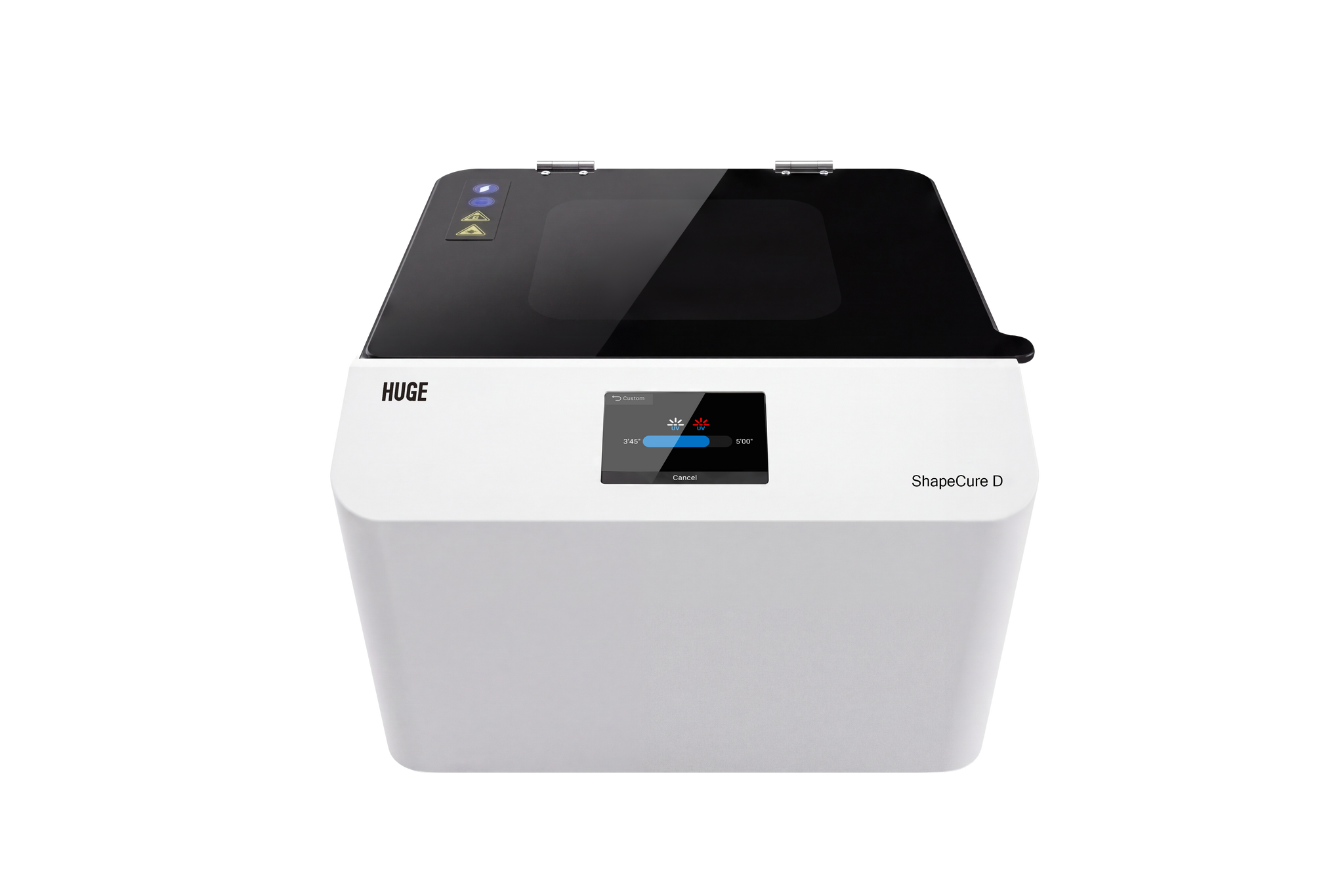

ShapeCure D is a professional UV curing machine for dental 3D printed parts. With 405nm multi-angle light sources providing 360° surround exposure and internal reflection, it ensures consistent, reliable final curing — the key step that locks in material performance.
Specifications of HUGE ShapeCure D UV Curing Machine
|
Specification |
Value |
|
Curing size |
180 mm (disc diameter) |
|
Wavelength |
405 nm |
|
Curing power |
150 W |
|
Curing method |
Multi-light 360° surround + internal reflection |
|
Compatible devices |
All printer models |
|
Control chip |
STM32 ARM chip |
|
Interface |
3.5-inch color capacitive touchscreen |
|
Power input |
100~120 VAC, 5A / 200~240 VAC, 2.5A, 50/60Hz |
|
Rated power |
200 W |
|
Curing settings |
Programmable |
|
Firmware update |
Via USB |
|
Menu language |
Chinese & English |
|
Device dimension |
312×342×193 mm |
|
Net weight |
8 kg |
|
Package size |
362×392×253 mm |
|
Package weight |
10 kg |
